For engineers seeking maximum strength-to-weight ratios, carbon fiber tubes and carbon fiber tubes deliver up to 5-6 times the strength of structural steel at just one-quarter the weight. Impact Materials leverages 20 years of industry expertise to guide you toward the perfect carbon fiber solution. Having served 120+ countries worldwide and completed 3,200+ successful projects, we’re your trusted partner for aerospace, automotive, marine, and industrial composite applications.
Carbon fiber sheets and tubes offer exceptional strength-to-weight ratios—providing up to 5-6 times the strength of structural steel at approximately one-quarter the weight. Whether you are manufacturing aerospace components, building high-performance automotive parts, developing robotic systems, or creating custom sporting goods, understanding the specifications, grades, and applications of carbon fiber sheets and tubes is essential for project success. From raw materials to finished products, we provide one-stop solutions that ensure your composite structures achieve maximum performance and longevity.
Table of Contents
- ✅ 20 years of industry expertise in composite materials
- ✅ 12 product lines, 400+ specifications including sheets & tubes
- ✅ Serving 3,200+ customers in 120+ countries worldwide
- ✅ ISO 9001 certified, ASTM D3039 compliant, full material traceability
- ✅ Free A4 samples (3-5 days delivery)
- ✅ Custom thickness and diameter options available
1. Carbon Fiber Sheet Overview
Carbon fiber sheets, also known as carbon fiber plates, are pre-cured composite panels made from multiple layers of carbon fiber fabric impregnated with epoxy resin and cured under high pressure and temperature. The resulting product offers exceptional stiffness, strength, and dimensional stability while maintaining an ultra-lightweight profile.
At Impact Materials, we supply carbon fiber sheets in thicknesses ranging from 0.5mm to 50mm, with various surface finishes including glossy, matte, and textured options. Our sheets are available in plain weave, twill weave, and unidirectional patterns, allowing you to select the most suitable configuration for your specific application requirements.
The manufacturing process involves precision layup of carbon fiber prepreg layers, followed by autoclave or compression molding to ensure consistent quality, void-free construction, and superior mechanical properties. Every batch includes Material Test Certificate (MTC) with full traceability to raw material lots.
2. Carbon Fiber Sheet Specifications & Grades
Selecting the appropriate carbon fiber sheet specifications is essential for achieving optimal performance in your application. Impact Materials supplies sheets in three primary grades, each optimized for different performance and cost requirements.
T700 carbon fiber sheets represent the most suitable balance of performance and cost for most structural applications. With 39% higher tensile strength than T300 (4,900 MPa vs 3,530 MPa), T700 sheets are the industry standard for aerospace, automotive, and high-performance industrial applications requiring ISO 9001 certification and full material traceability.
3. Carbon Fiber Tube Overview
Carbon fiber tubes are cylindrical structural components manufactured through pultrusion or roll-wrapping processes. These tubes offer exceptional bending stiffness and compressive strength while maintaining minimal weight—making them ideal for applications requiring high rigidity and low mass.
At Impact Materials, we supply carbon fiber tubes in diameters ranging from 3mm to 400mm, with wall thicknesses from 0.5mm to 20mm. Our tubes are available in round, square, rectangular, and elliptical profiles to match diverse structural requirements. Both pultruded (cost-effective, high volume) and roll-wrapped (superior mechanical properties, custom layups) options are available.
The manufacturing process involves precision winding of carbon fiber prepreg layers at specific angles (typically 0°, 90°, and ±45°) to optimize mechanical properties for the intended load conditions. Every tube undergoes rigorous quality control including dimensional inspection, visual examination, and mechanical testing when required.
4. Carbon Fiber Tube Specifications & Profiles
Selecting the appropriate carbon fiber tube specifications is crucial for achieving most suitable structural performance. Impact Materials supplies tubes in various profiles, grades, and manufacturing methods to match your application requirements.
For applications requiring maximum bending stiffness, roll-wrapped tubes with optimized fiber orientation (higher percentage of 0° fibers) offer superior performance compared to pultruded tubes. However, pultruded tubes provide excellent cost-effectiveness for high-volume production where standard mechanical properties are sufficient. Our technical team can help you select the perfect manufacturing method based on your specific requirements.
5. Major Applications by Industry
As a composite materials supplier serving 120+ countries worldwide, For more information, click here.Impact Materials has supported over 3,200 successful projects across diverse industries. Here are the primary application sectors where carbon fiber sheets and tubes deliver excellent value.
Aerospace & Aviation
Sheets: Aircraft interior panels, floor panels, cargo liners, drone frames, UAV components. T700/T800 grades for FAA/EASA compliance. Weight savings improve fuel efficiency, range, and payload capacity.
Tubes: Drone arms, aircraft structural supports, antenna masts, landing gear components. High stiffness-to-weight ratio critical for flight performance.
Automotive & Transportation
Sheets: Body panels, hood inserts, roof panels, chassis reinforcement plates, EV battery enclosures. Weight reduction improves acceleration, handling, braking, and driving range.
Tubes: Roll cages, drive shafts, suspension components, steering columns. High torsional stiffness for improved handling and safety.
Robotics & Automation
Sheets: Robot base plates, mounting panels, end effector components. Dimensional stability critical for precision positioning.
Tubes: Robotic arms, linear motion rails, gantry systems. High stiffness reduces deflection, improving accuracy and repeatability.
Sports & Recreation
Sheets: Bicycle frame components, tennis racket frames, snowboard cores, protective gear. Superior vibration damping improves comfort and control.
Tubes: Bicycle frames, handlebars, seat posts, fishing rods, hockey sticks, tent poles. Optimized for specific load conditions.
Marine & Water Sports
Sheets: Racing yacht decks, bulkheads, interior components. Corrosion resistant for saltwater environments.
Tubes: Mast sections, boom components, paddle shafts, flag poles. Weight savings improve vessel speed and stability.
Industrial & Manufacturing
Sheets: Machine guards, inspection fixtures, conveyor components, cleanroom panels. Chemical resistance for demanding environments.
Tubes: Roller shafts, idler rollers, pneumatic cylinders, telescopic poles. High stiffness for precision applications.
6. Premium Carbon Fiber Products from Impact Materials
With 12 product lines and over 400 specifications, Impact Materials offers a comprehensive range of high-performance carbon fiber products. Below are our flagship carbon fiber sheets and tubes designed to meet the rigorous demands of modern industry.
Carbon Fiber Sheet
Pre-cured plates in various thicknesses (0.5mm-50mm). Glossy/matte finish, plain/twill weave. T300/T700/T800 grades. Perfect for structural reinforcement, aerospace panels, automotive components.

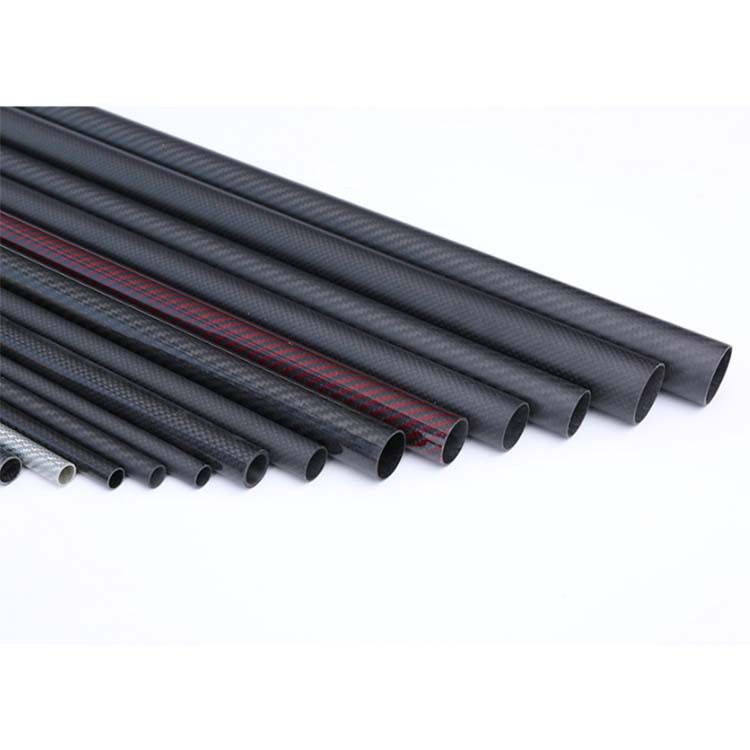

Carbon Fiber Tube
Pultruded/rolled tubes in round, square, rectangular profiles. Diameters 3mm-400mm. Wall thickness 0.5-20mm. Ideal for drone frames, robotic arms, structural applications requiring high stiffness.
Carbon Fiber Fabric
High-quality woven carbon fiber in plain, twill, unidirectional patterns. T300/T700/T800 grades from 90gsm to 600gsm. Ideal for aerospace, automotive, marine applications.

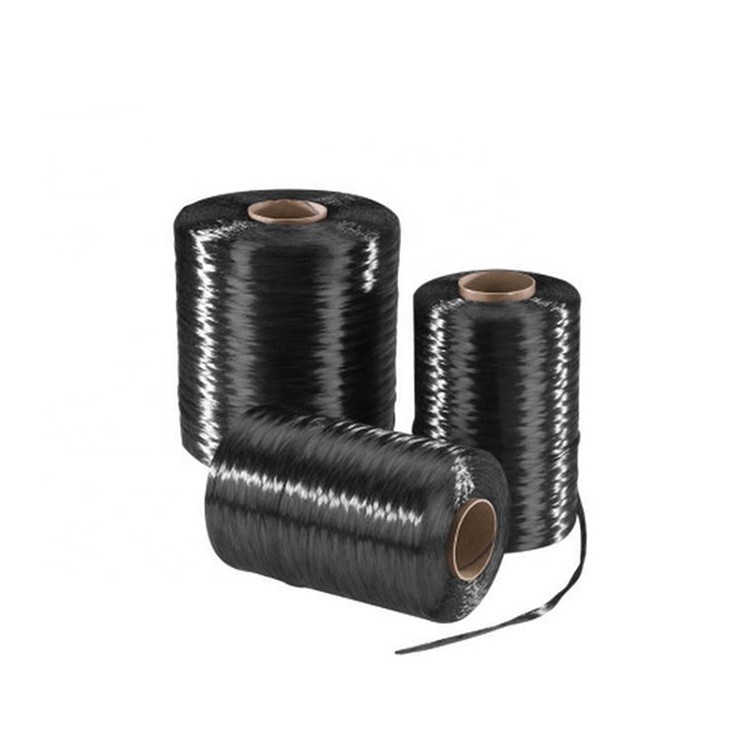

Carbon Fiber Yarn
Continuous roving for filament winding, pultrusion, weaving. Available in 1K, 3K, 6K, 12K, 24K tow sizes. Optimized for industrial manufacturing processes.
7. Frequently Asked Questions (FAQ)
Q: What is the difference between carbon fiber sheets and plates?
A: The terms are often used interchangeably. Generally, “sheets” refer to thinner materials (0.5-5mm), while “plates” refer to thicker sections (5-50mm). At Impact Materials, we use “sheet” for all thicknesses to maintain consistency across our product catalog.
Q: What is the difference between pultruded and roll-wrapped carbon fiber tubes?
A: Pultruded tubes are cost-effective with consistent properties, ideal for high-volume production. Roll-wrapped tubes offer superior mechanical properties with customizable fiber orientation, perfect for high-performance applications requiring optimized stiffness and strength.
Q: Can you cut carbon fiber sheets and tubes to custom sizes?
A: Yes! Impact Materials offers custom cutting services for sheets (any size up to 1000×1000mm) and tubes (any length up to 6000mm). We also provide CNC machining, drilling, and edge finishing services. Contact our technical team for a quote.
Q: What adhesives work best for bonding carbon fiber?
A: Epoxy adhesives provide the strongest bonds for carbon fiber-to-carbon fiber joints. For carbon fiber-to-metal bonds, use structural acrylics or modified epoxy. Surface preparation (sanding with 80-120 grit, cleaning with acetone) is critical for optimal bond strength.
Q: Do you provide Material Test Certificates (MTC)?
A: Yes! Every batch of carbon fiber sheets and tubes from Impact Materials includes a Material Test Certificate (MTC) with full traceability to raw material lots. MTC includes tensile strength, modulus, density, and fiber content test results per ISO 9001 requirements.
Q: What is the lead time for carbon fiber sheets and tubes?
A: Standard sizes are typically in stock and ship within 3-5 days. Custom thickness, diameters, or lengths require 10-15 days for production. Rush orders available with 20% surcharge. Contact our sales team for current inventory and expedited options.
Q: Do you offer free samples?
A: Yes! Impact Materials provides free A4-sized samples (210×297mm) for evaluation. Standard samples ship within 3-5 days via express courier. Custom samples (specific thickness or diameter) may require 7-10 days. Contact our sales team with your requirements.
8. Conclusion
Carbon fiber sheets and carbon fiber tubes represent two of the most versatile and widely-used forms of composite materials in modern manufacturing. With exceptional strength-to-weight ratios, superior stiffness, and excellent corrosion resistance, these products enable engineers and designers to create lighter, stronger, and more efficient structures across aerospace, automotive, robotics, sports, marine, and industrial applications.
As you plan your next manufacturing endeavor, remember that the quality of your raw materials dictates the quality of your final product. With 12 product lines and over 400 specifications, Impact Materials is your trusted, globally recognized partner in composite manufacturing. Our dedicated technical team is ready to assist you in selecting the perfect materials, grades, thicknesses, and specifications for your unique application. From raw materials to finished products, we provide one-stop solutions.
